AC4 UL 600 kg

  • Consumption only 9-14 liters / h
  • high-tech covering
  • spacious
  • «Swiss Made»
Download PDF-Broschüre (EN / 2.48MB)

To fly Echo-class in the ultralight class = AC4 UL.

As a UL with 600kg total weight, the AC4 combines the advantages of LSA and UL.

Highest construction quality according to LSA standards and the great freedom of ultralight flying.


Contact for offer



The Lightwing AC4 UL is a top class ultralight aircraft in terms of economy, robustness and generous space, derived from our CS-LSA.

An
ideal UL training aircraft in which future pilots feel at home straight away.

The flight characteristics are convincing, the handling both in the air and on the ground is impressively simple. Thanks to the large tail unit and long fuselage, the AC4 UL is very stable in the air. In slow flight, the aircraft remains perfectly and easily controllable.

The
flight performance corresponds to a good-natured and forgiving training platform, which is also ideal for use on short grass runways.

The
robust, maintenance-free landing gear with large wheels has been perfectly tuned for unpaved grass runways as well as for rough training operations. It also handles harder landings without any problems.

The
space in the cabin, with a width of 1.26m, is extremely generous. The luggage compartment behind the seats is very accessible and two large suitcases can be loaded easily. The central control stick also allows pilot bags to be placed in front of the two seats, which remain easily accessible during the flight.

And last but not least, thanks to the
effective heating, the aircraft can also be used in winter.

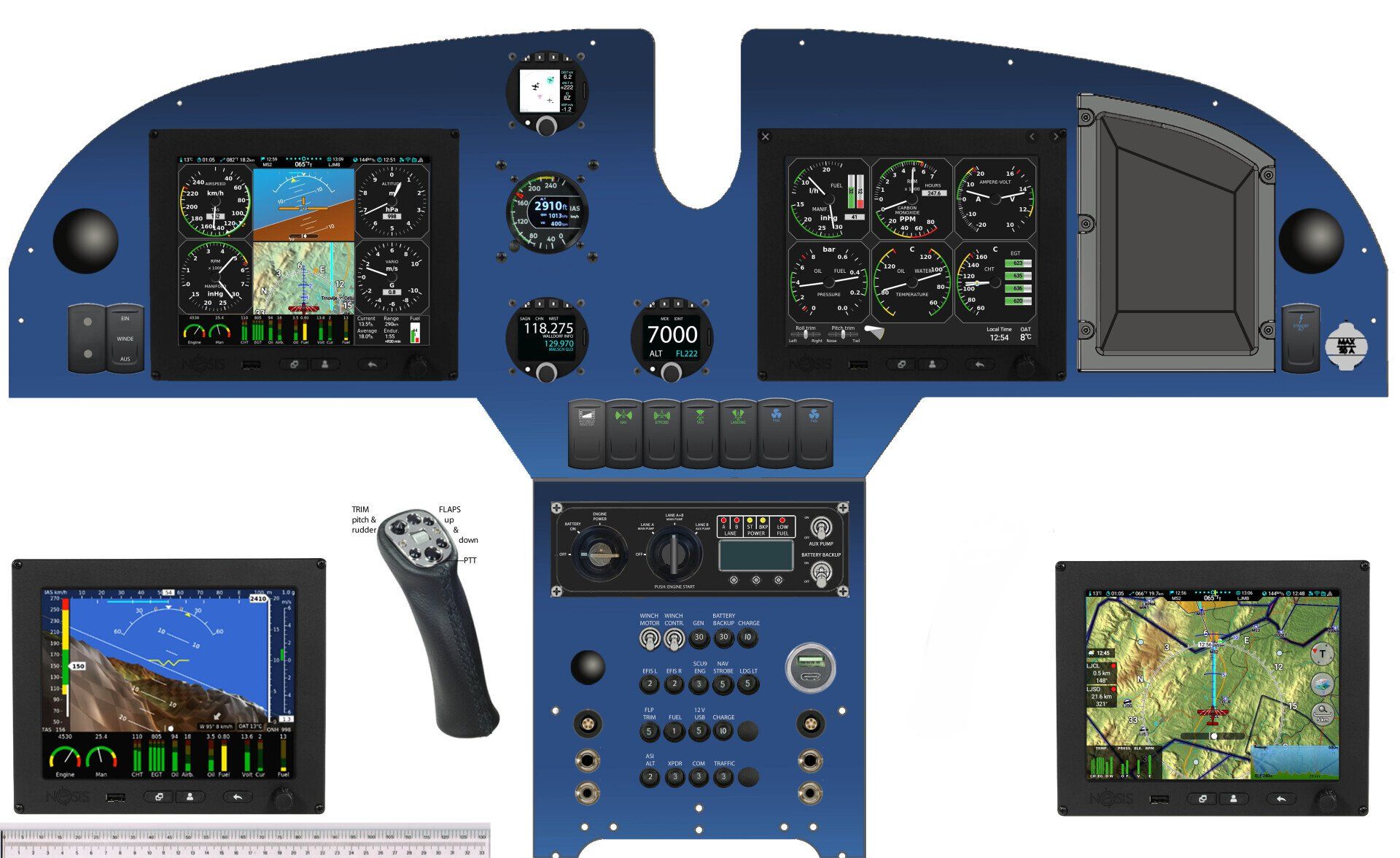

The Rotax 912iS fuel-injected engine is economical, quiet and powerful, and the avionics are also the best currently available: the Kanardia NESIS III system - adapted to the AC4 - with radio and transponder from AirAvionics.



  • Whether digital or analogue panel: one push of a button is enough.
  • Monitoring of engine data; done with a 1-second glance.
  • Traffic warnings with FLARM and ADS-B data plus spoken instructions: Traffic Display and directly on the map in the Nesis.
  • Space for tablet: standard on each side and convenient above the legs.
  • Engine operation as easy as never before: with the in-house control panel incl. black box from RS Flightsystem.
  • Great fun factor when flying: included.


The AC4 is the adult UL


There are many ultralight aircraft, but only one that is as relaxed and easy to fly as the AC4 UL. Thanks to its large flying control surfaces and comparatively long fuselage, it flies as stably as if an autopilot was built in. The electric trim, adjustable with the thumb on the sidestick, can be set very precisely.


Special features

• Direct, precise front wheel steering

• Largest cabin in this class with 1.26m width

• Ergonomic and highly durable CFRP seats

• Best visibility

• Convenient sidestick control

• Electric flaps and trim

• State-of-the-art Kanardia navigation system

• Wifi connection with mobile phones and tablets

• Integrated, electronic fuses

• User-friendly, intuitive operation

• Economical, water-cooled injection engine

• Fuel consumption 11-14 ltrs/h MOGAS

• Redundant sensors and actuators

• Double power supply

• Display of all engine data in Kanardia NESIS III

• Very safe and spin-resistant flight behaviour

• Exemplary stability around all 3 axes

• Total rescue system 600kg

• Lowest operating costs

The AC4 UL with 600 kg maximum take-off mass has been granted type certification by «Deutschen Ultraleichtfliegerverband e.V.» (DULV) 2021. It is also recognised in various other European countries. If you are not sure whether this is also valid for your country, please contact us or our sales partners - we will be happy to help you!

Download archive Newsletter AC4 UL

May 2023 (EN)

Would you also like to be contacted by e-mail newsletter about detailed product information and news? Get in touch with us!

We look forward to you.
