AC4 GT (glider tow)
- Fuel consumption 50% lower compared to previous tow aircrafts
- Quiet and resident-friendly noise (62 dB(A))
- Climb performance 7.5m/sec.
- Start roll distance 92m (sea level/MTOW)
- CS-LSA MTOW 630kg
- «Swiss Made»
AC4 GT, the unconditional towing machine of the future. Extremely powerful and economical, we bring gliders up to 850kg aloft at the optimum towing speed.

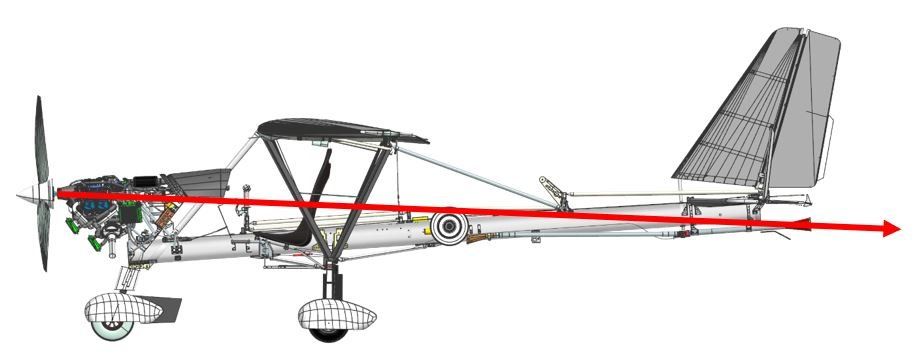

Impressively simple and robust lightweight construction promises extremely efficient and economical towing operation. The forces are optimally introduced, from the engine via the central fuselage tube to the glider.

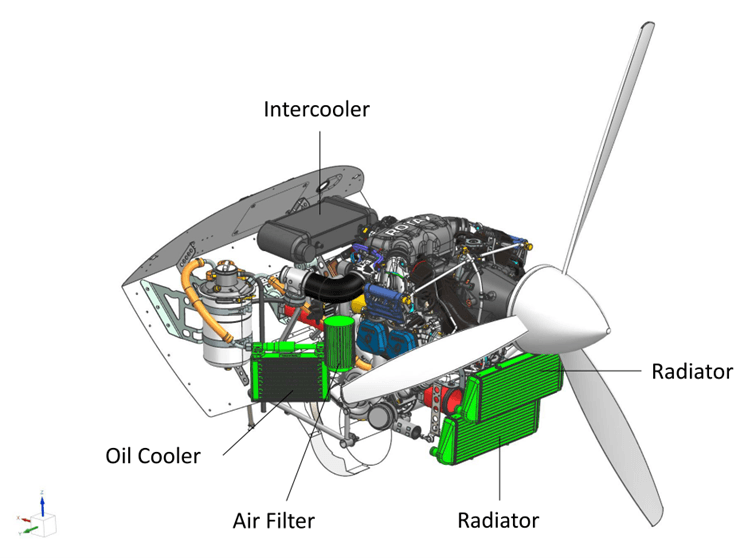

The powerful tug with Rotax 915 iSC 141 hp turbo engine and constant speed propeller with single lever control for easy operation.
Oil and water cooling systems are designed for sustained towing performance at any temperature and altitude.

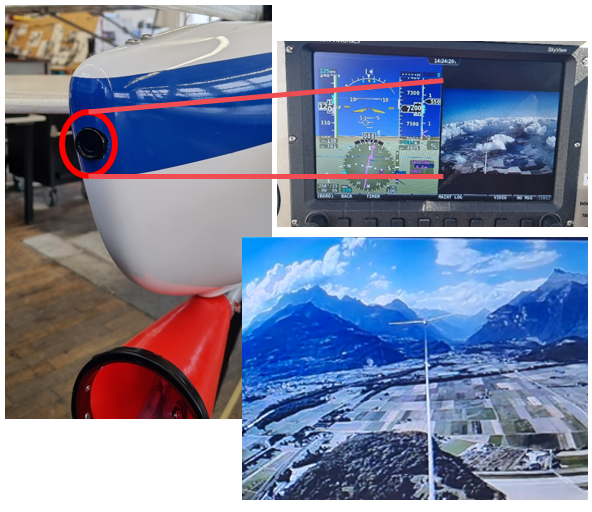

The image from the tail-mounted on-board camera is displayed directly in front of the pilot's eyes in the EFIS for the perfect overview.

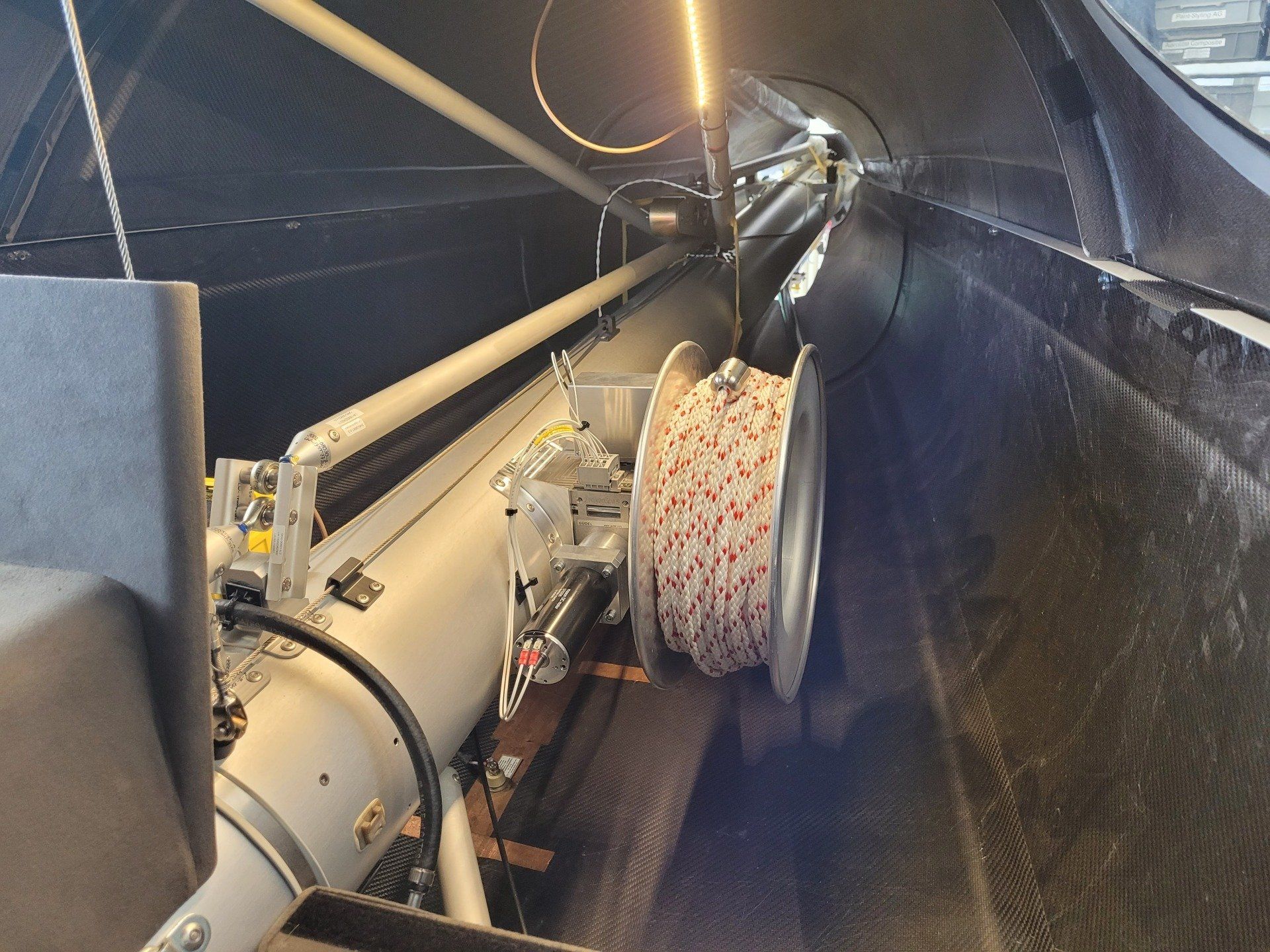

Reliable winch designed by Maag (known as the Langenthal winch).
When towing, a wide speed range between 100 - 150 km/h can be covered. Built with Maxon motors and Güdel gearboxes, both Swiss quality products.
The AC4 GT moves safely on all runways with the large 6 inch wheels and the large propeller ground clearance of 33cm, built for continuous rough towing operation.
We expect 50% lower operating costs compared to currently available tow airplanes, achieved through the uncompromisingly applied lightweight construction and the optimised drive with the enormous system robustness.
In addition, the AC4 GT performs its work as quietly as a whisper with a resident-friendly noise level.
Our AC4 GT is certified according EASA Light Sport Aeroplanes (LSA)
Feedbacks at tow demonstrations from test- & gliderpilots
«Extremely good rolling behaviour, fast speed build-up»
«Rapid taxiing, easily controllable, take-off after a short taxiing distance»
«Rapid climbing at any altitude»
«Good handling in tow even in turbulence»
«Very positive on the ground is the low noise level with a pleasant sound»
«No overheating of AC4 GT, neither water nor oil even at high outside temperatures and long tows»
